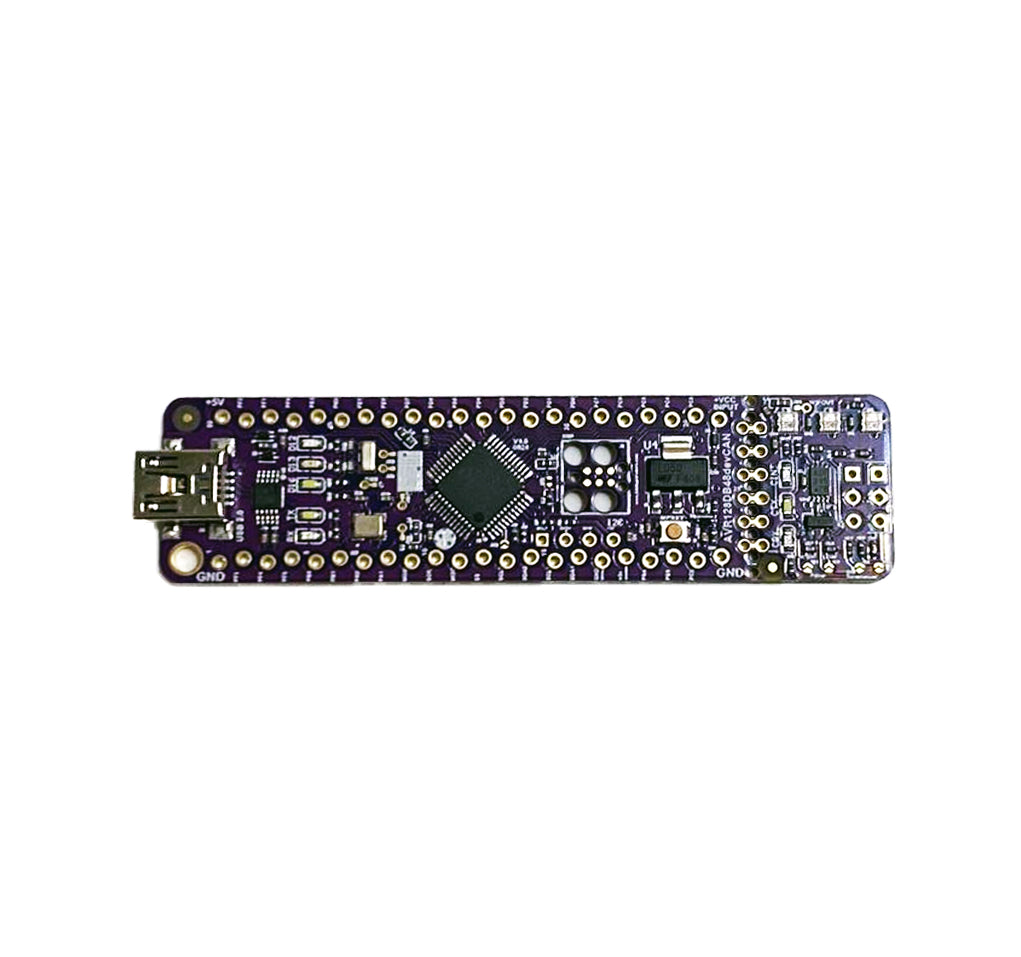

AVR128DB48devCAN Development Board - Curiosity Nano

Professional AVR development platform with integrated CAN bus

Accelerate your embedded development with our feature-rich AVR128DB48devCAN  development board. Built around the powerful AVR128DB48 microcontroller and featuring integrated CAN bus connectivity, this board provides everything you need for professional embedded development and prototyping.

Core Features

• AVR128DB48 microcontroller (128KB Flash)
• Integrated CAN bus interface
• Arduino-compatible pin headers
• USB programming/debug interface
• Multiple power supply options
• Built-in LED indicators

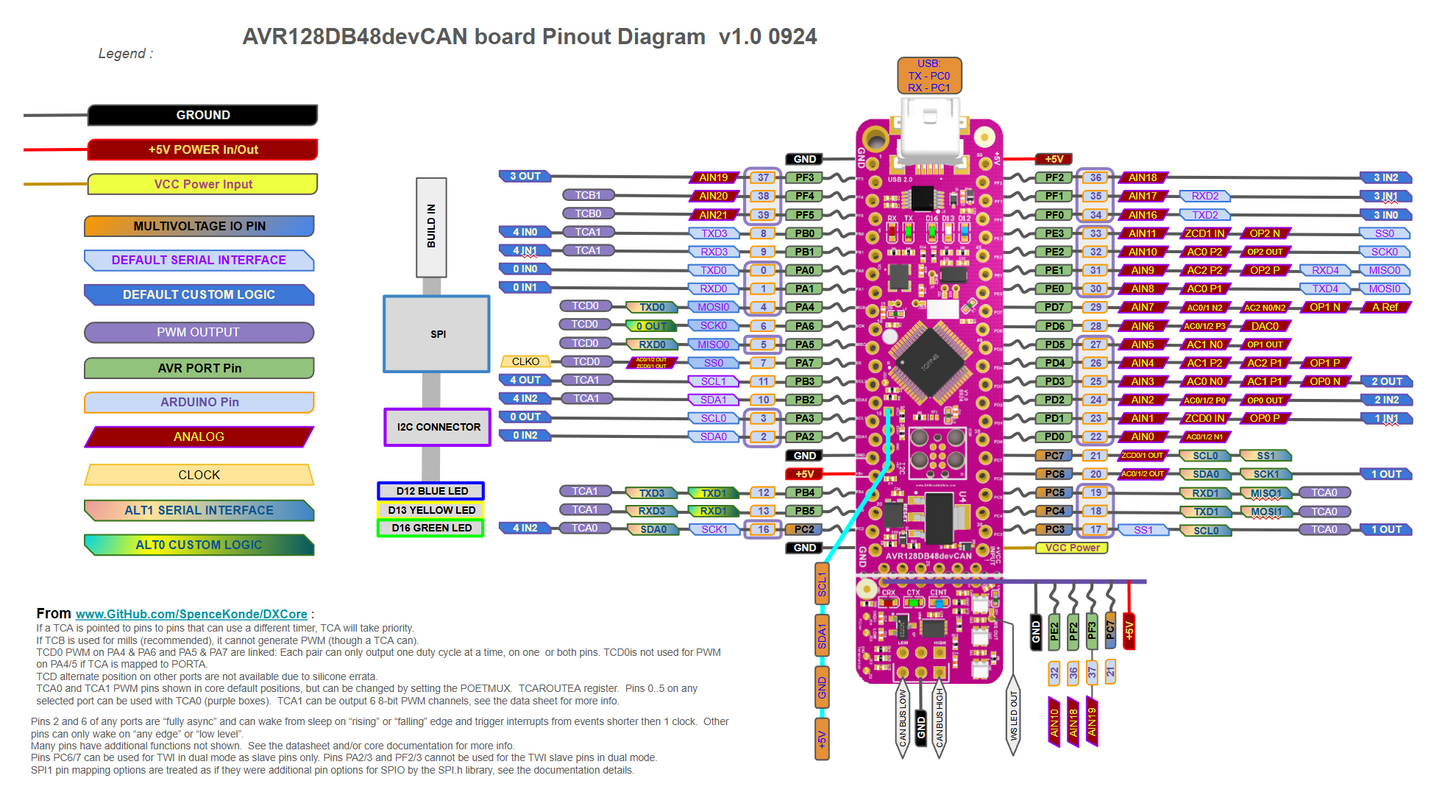

• Extensive I/O breakouts

Technical Specifications

• 128KB Flash memory
• 16KB SRAM
• 512B EEPROM
• Up to 24MHz operation
• 1.8V to 5.5V operating range
• Multiple PWM channels
• Hardware multiplier
• Advanced analog features

Development Features

• UPDI programming interface
• On-board USB connector
• Multiple timer/counters
• 6x UART interfaces
• 2x SPI interfaces
• 2x I2C (TWI) interfaces
• 12-bit ADC
• 10-bit DAC

Advanced Capabilities

• Event system for inter-peripheral signaling
• Configurable custom logic (CCL)
• Analog signal conditioning (OPAMP)
• Zero-cross detection
• Multiple voltage references
• CRC memory scan

Perfect For

• Industrial automation
• Automotive projects
• Sensor networks
• Motor control
• Educational platforms
• Prototyping systems

What's Included

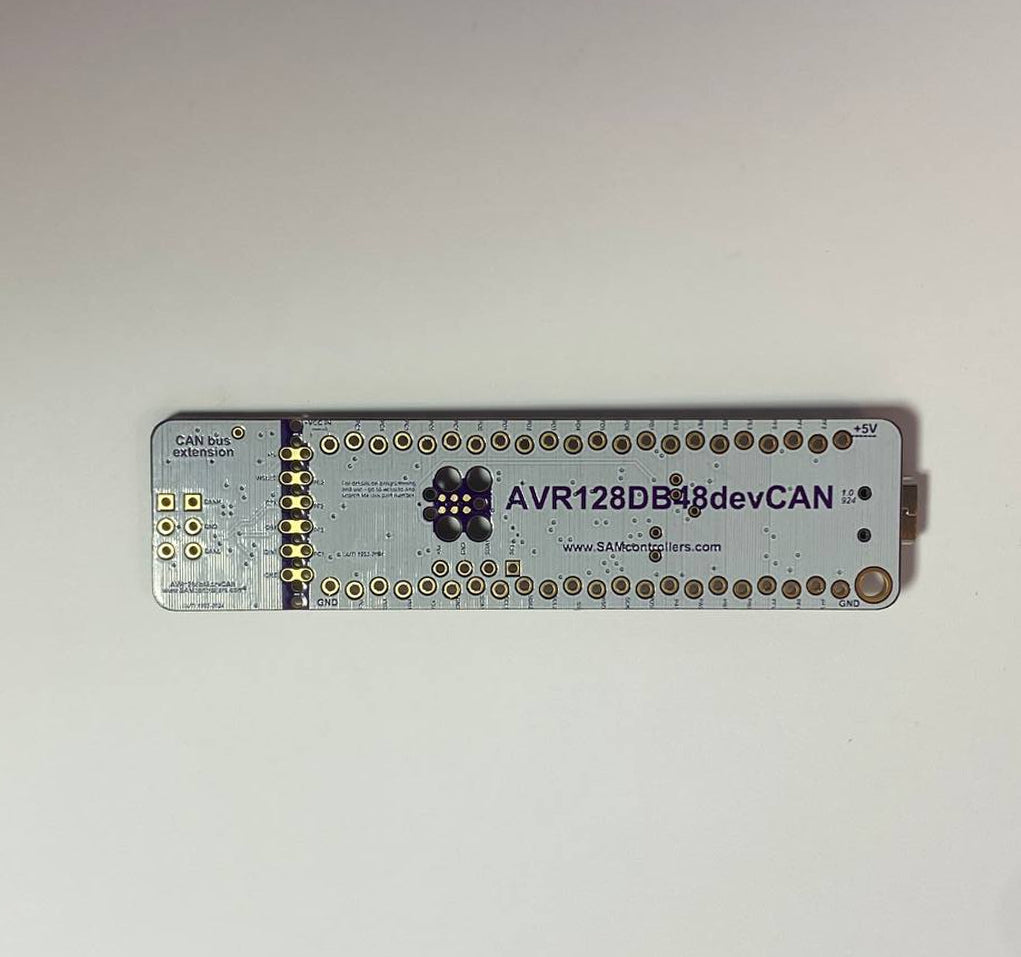

• AVR128DB48devCAN board
• USB programming cable
• Getting started guide
• Example projects

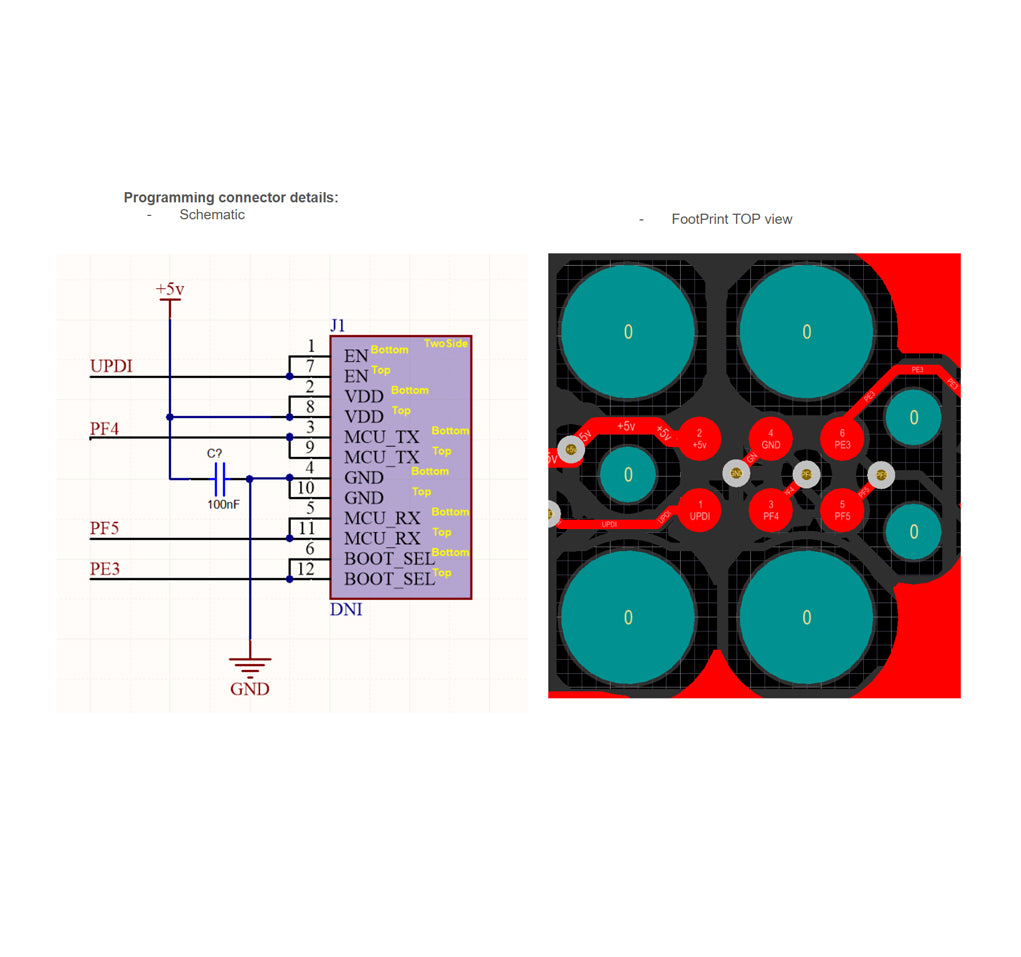

• Schematic & documentation

AVR128DB28/32/48/64 Datasheet

Complete development platform for professional embedded systems with CAN bus integration
