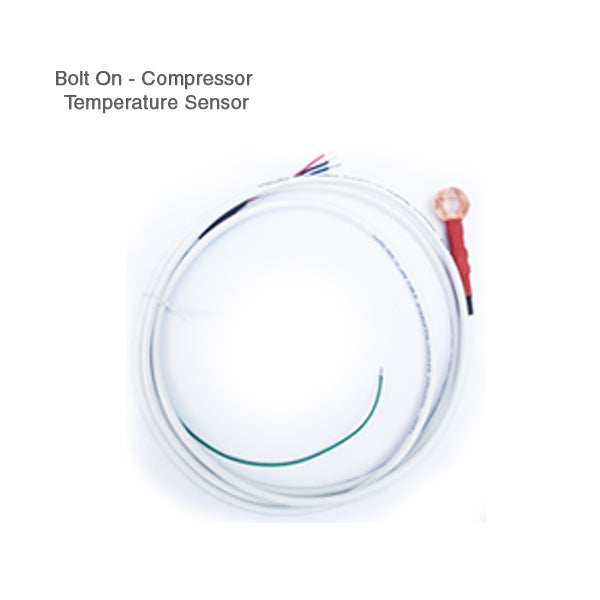

Bolt on Pump Temperature Sensor Replacement DTB360 R1/R2

Monitor Your Compressor's Pumps with Precision Temperature Sensing

The DTB360 is a professional-grade bolt-on temperature sensor designed specifically for monitoring air compressor pump temperatures. This reliable sensor provides accurate real-time temperature monitoring to protect your valuable compressor investment.

Key Features:

• High-precision digital self-calibrating sensor with analog output
• Temperature range: -40°C to +125°C (±2°C accuracy)
• Easy bolt-on installation to compressor pump head
• 6-foot connection cable included
• Robust design for industrial environments

Benefits:

• Prevents compressor damage by monitoring pump temperature
• Enables smart temperature-based control of cooling systems

• Early warning of potential overheating issues
• Essential for automated compressor protection systems

Installation: Simply mount under an existing bolt where your compressor cylinder attaches to the compressor body. For two-stage compressors, we recommend installing on the first stage cylinder for optimal temperature monitoring.

Compatible With:

• Works with Model CCR100/CCR200 controllers
• Essential component for compressor monitoring systems

Technical Specifications:

• 4-wire configuration:
  • Black: Common (-)
  • Red: Power (+)
  • Blue: Signal
  • Green: Ground shield
• Linear output: 100mV to 2.0V corresponding to -40°C to +125°C

Give your air compressor the protection it deserves with reliable temperature monitoring from the DTB360 sensor. Essential for any automated compressor control system.

Note: Professional installation recommended. Refer to controller manual for proper wiring and setup.
