12A H-Bridge Driver

Professional-grade motor control in a compact package

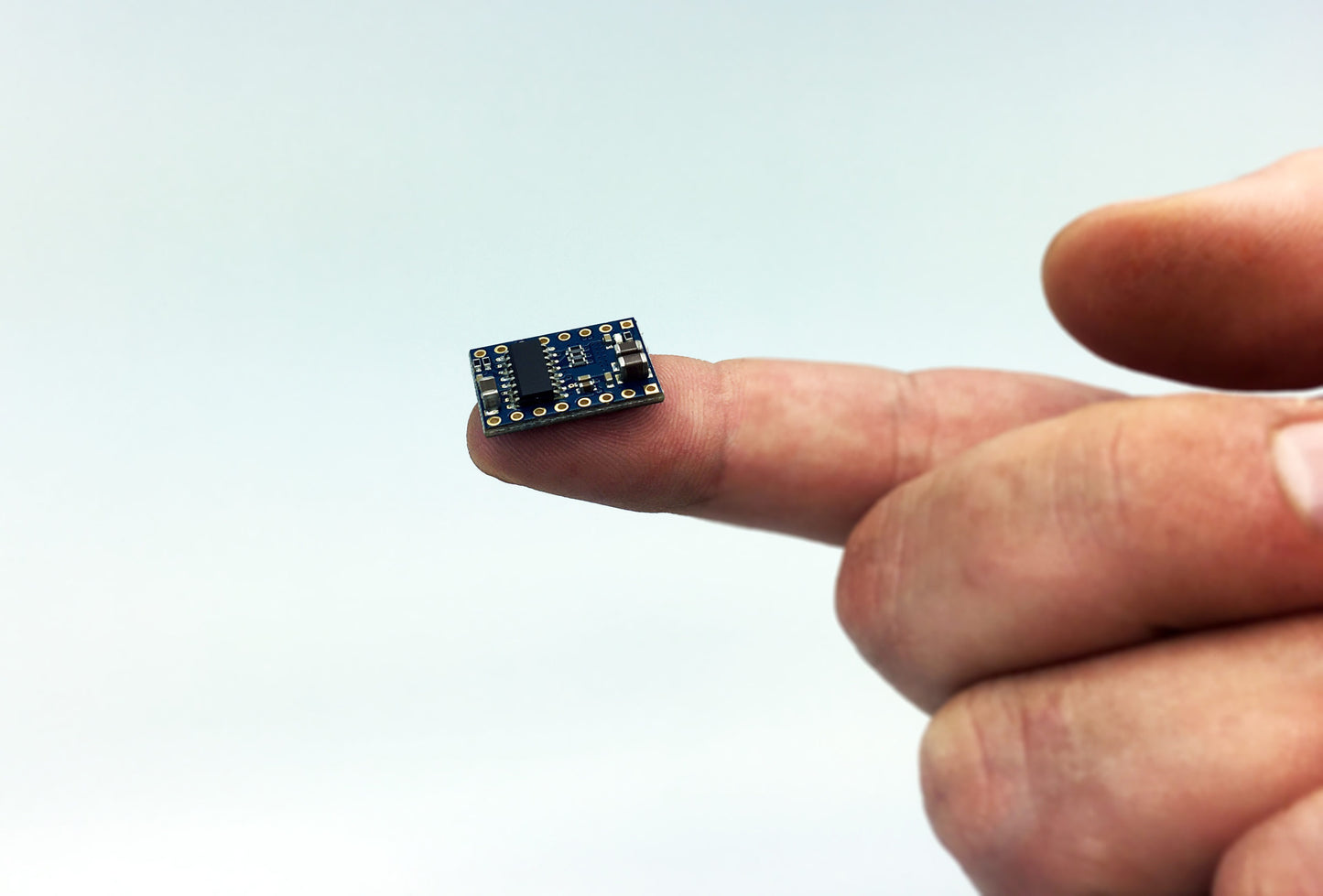

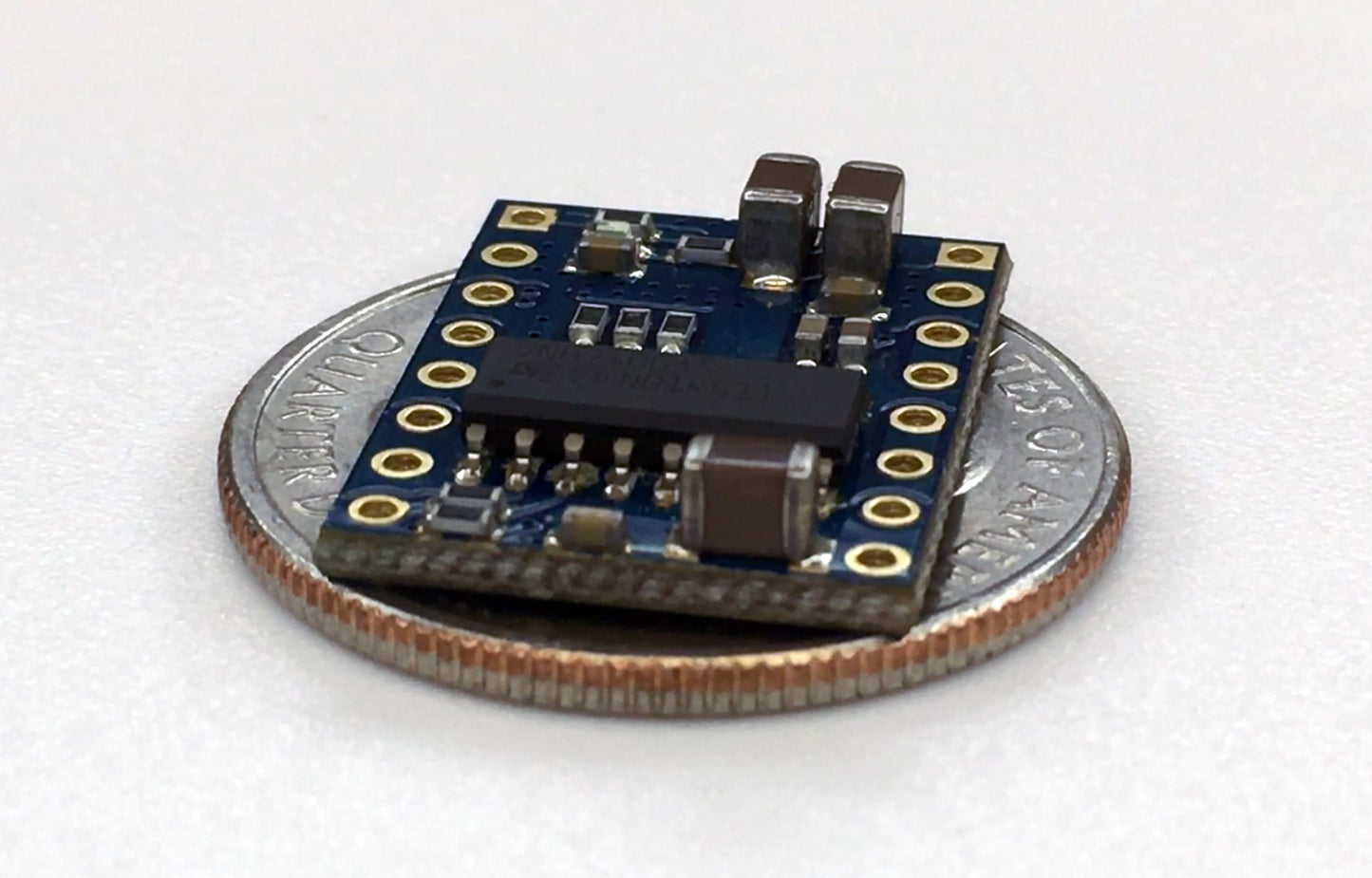

Transform your DC motor projects with our high-performance H-bridge driver. Built around automotive-grade components, the Power H Mini delivers exceptional control in an incredibly compact 15mm x 20mm form factor.

Key Features

• 12A peak current capability
• 4-28V motor voltage range
• Ultra-low 1µA standby current
• PWM operation up to 20kHz
• MultiSense diagnostic feedback
• Automotive-grade reliability
• Active thermal protection
• Overcurrent protection
• Complete short circuit protection

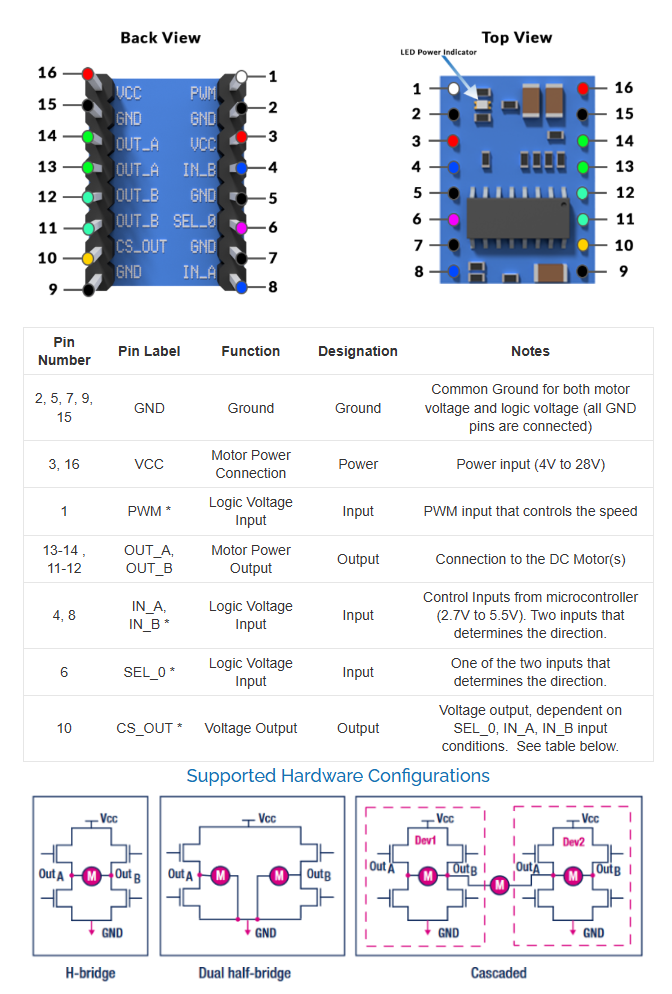

Versatile Configuration

• Single motor (full H-bridge)
• Dual motor (half-bridge)
• Triple motor (cascaded)
• Compatible with 2.7-5.5V logic

Perfect For

• Robotics projects
• Precision motion control
• Automated systems
• Educational platforms
• Prototyping applications

Professional Advantages

• Minimal heat dissipation
• Superior braking control
• Improved energy recuperation
• Drop-in replacement for A4988/DRV8825
• Compact alternative to L298/BTS7960
• Open-source design with full documentation

What's Included

• Pre-assembled driver board
• Technical documentation
• Sample Arduino code
• GitHub project access
• Integration examples

Note: Heat sink may be optional for applications under 5A

GitHub: SAM-VNH7DC12A-Demo
